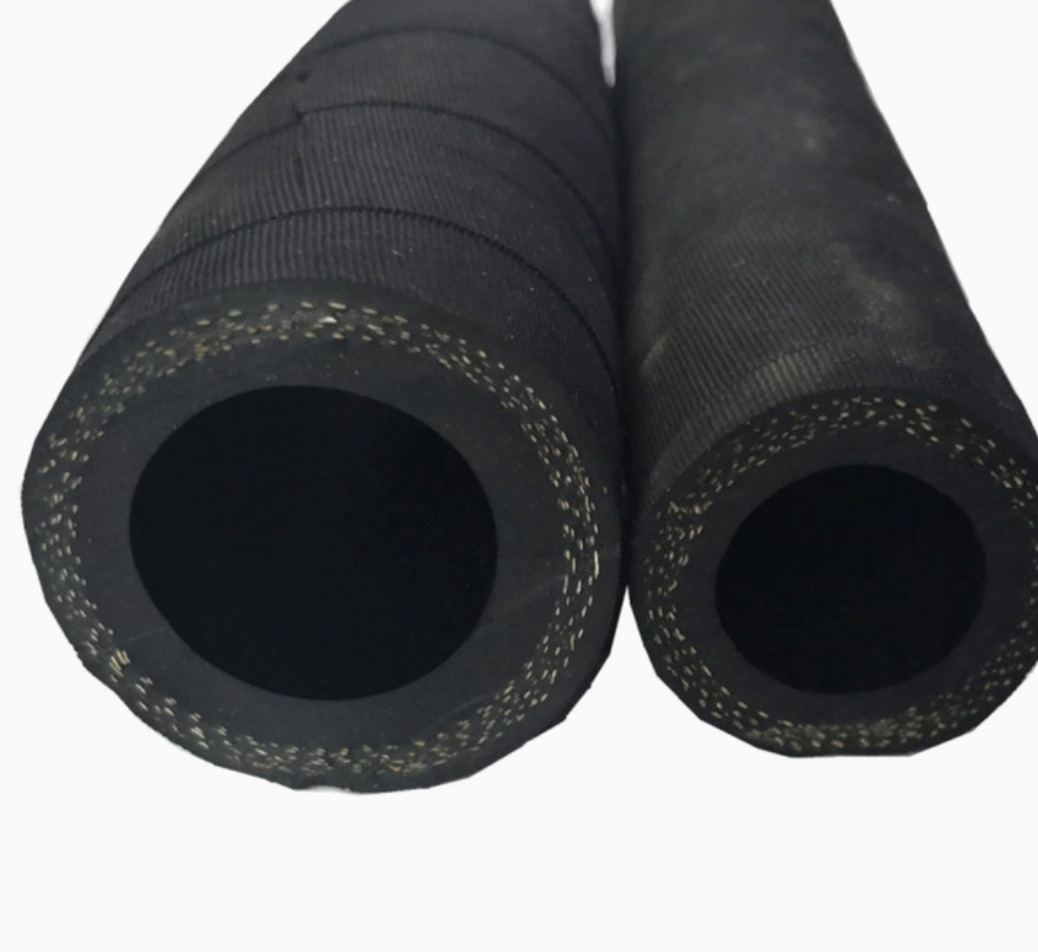

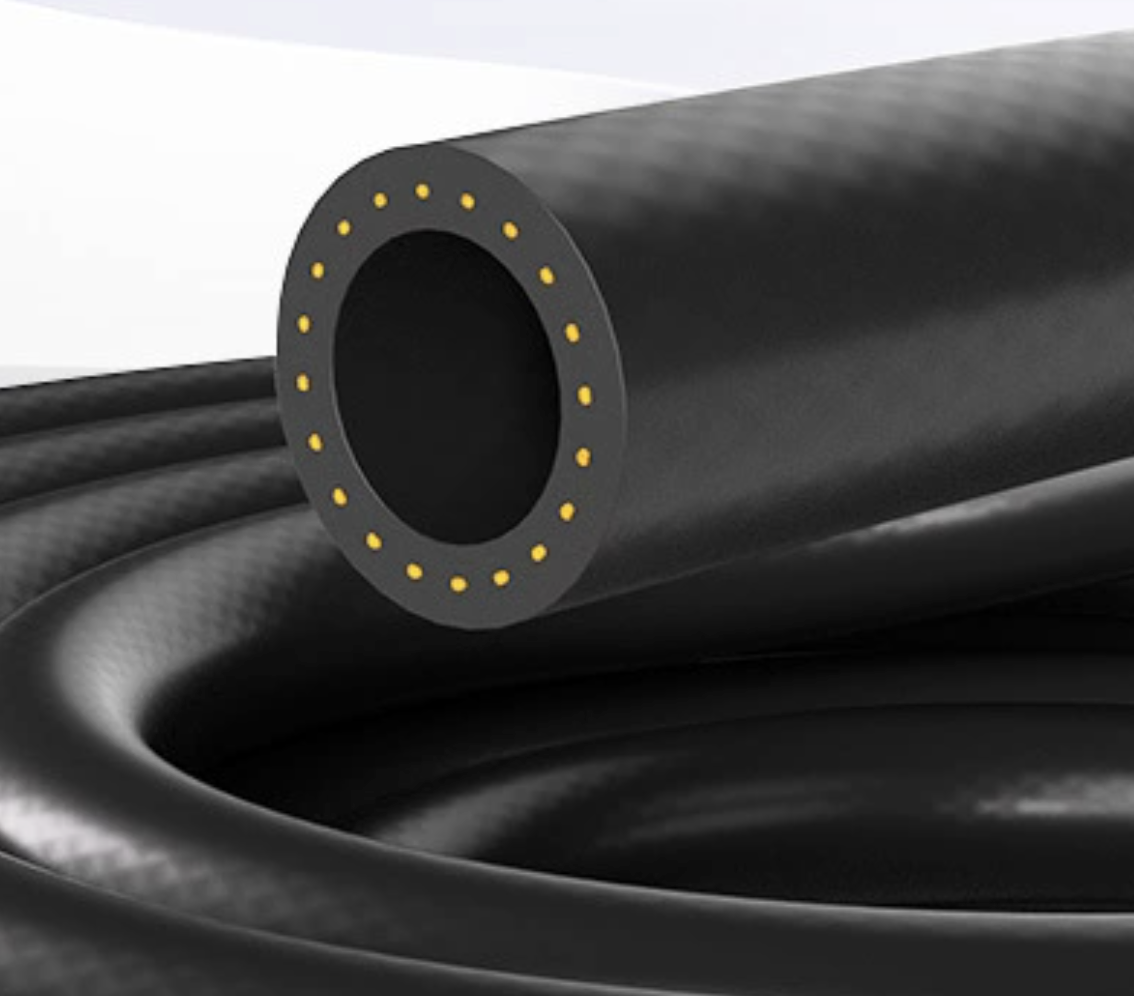

EN853 2SN High Pressure Hydraulic Rubber Hose

Product Overview

The EN853 2SN hydraulic rubber hose is a premium-grade, medium-to-high pressure hose designed per European standard EN853 2SN, also compliant with SAE 100R2AT and ISO 1436 Type 2. It features a robust 3-layer construction for reliable fluid transfer in demanding hydraulic applications.

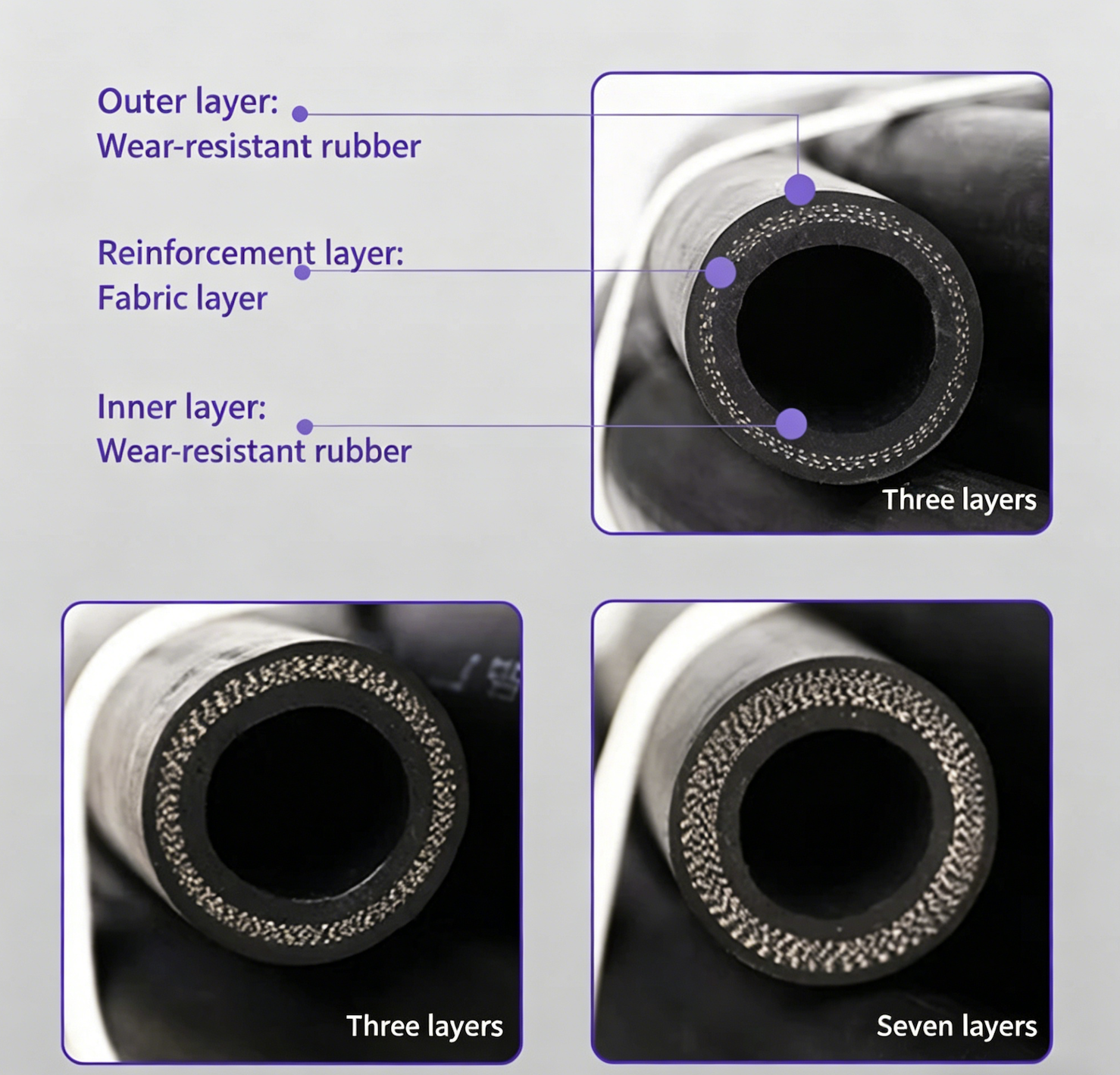

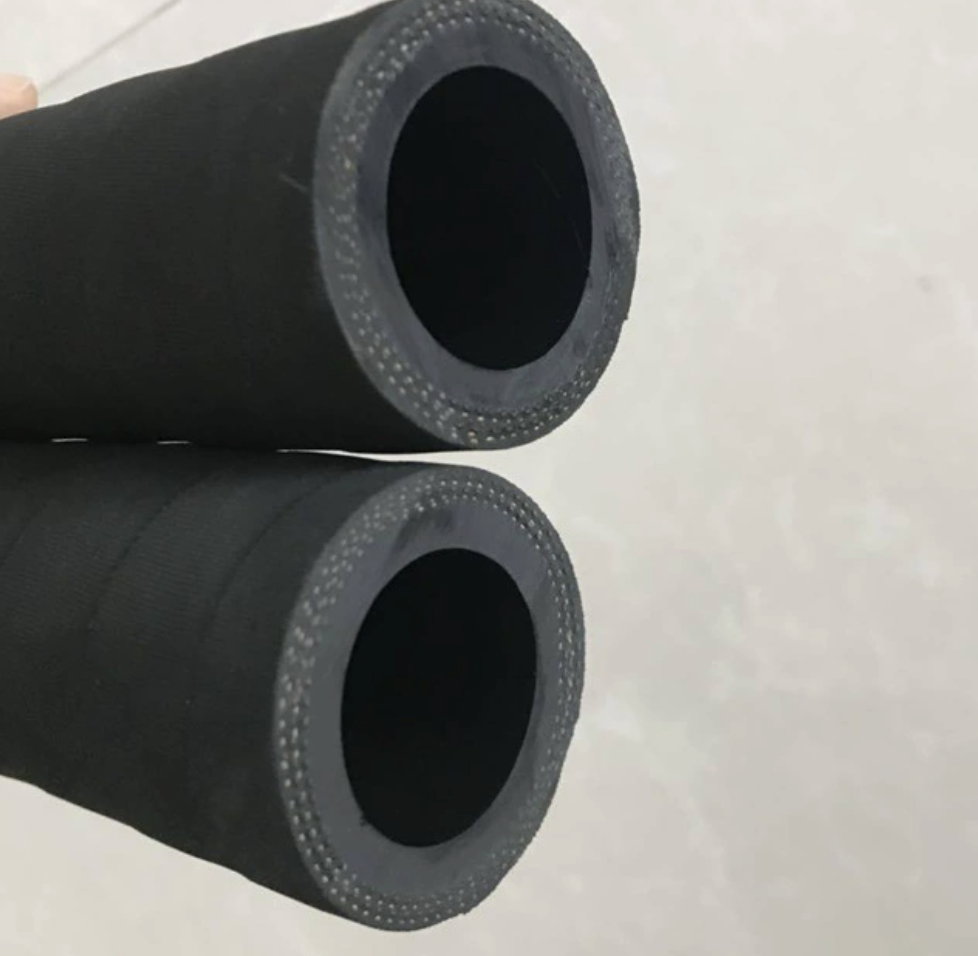

Construction & Material

• Inner Tube: Oil-resistant synthetic rubber (NBR), compatible with petroleum-based hydraulic fluids, water-glycol, and emulsions.

• Reinforcement: Two layers of high-tensile steel wire braid, providing exceptional pressure resistance and structural stability.

• Outer Cover: Abrasion, ozone, and weather-resistant synthetic rubber, protecting against UV, chemicals, and mechanical wear.

Key Specifications

• Temperature Range: -40°C to +100°C (-40°F to +212°F) (intermittent up to 120°C).

• Pressure Rating: Working pressure up to 400 bar (5800 PSI), burst pressure ≥ 1600 bar (23200 PSI) (varies by size).

• Sizes: 1/4" to 2" (DN06-DN51), custom lengths available.

Applications

Perfect for hydraulic power transmission in:

• Construction machinery (excavators, loaders)

• Agricultural equipment (tractors, harvesters)

• Industrial hydraulic systems (presses, conveyors)

• Mining and marine hydraulic circuits

Quality Assurance

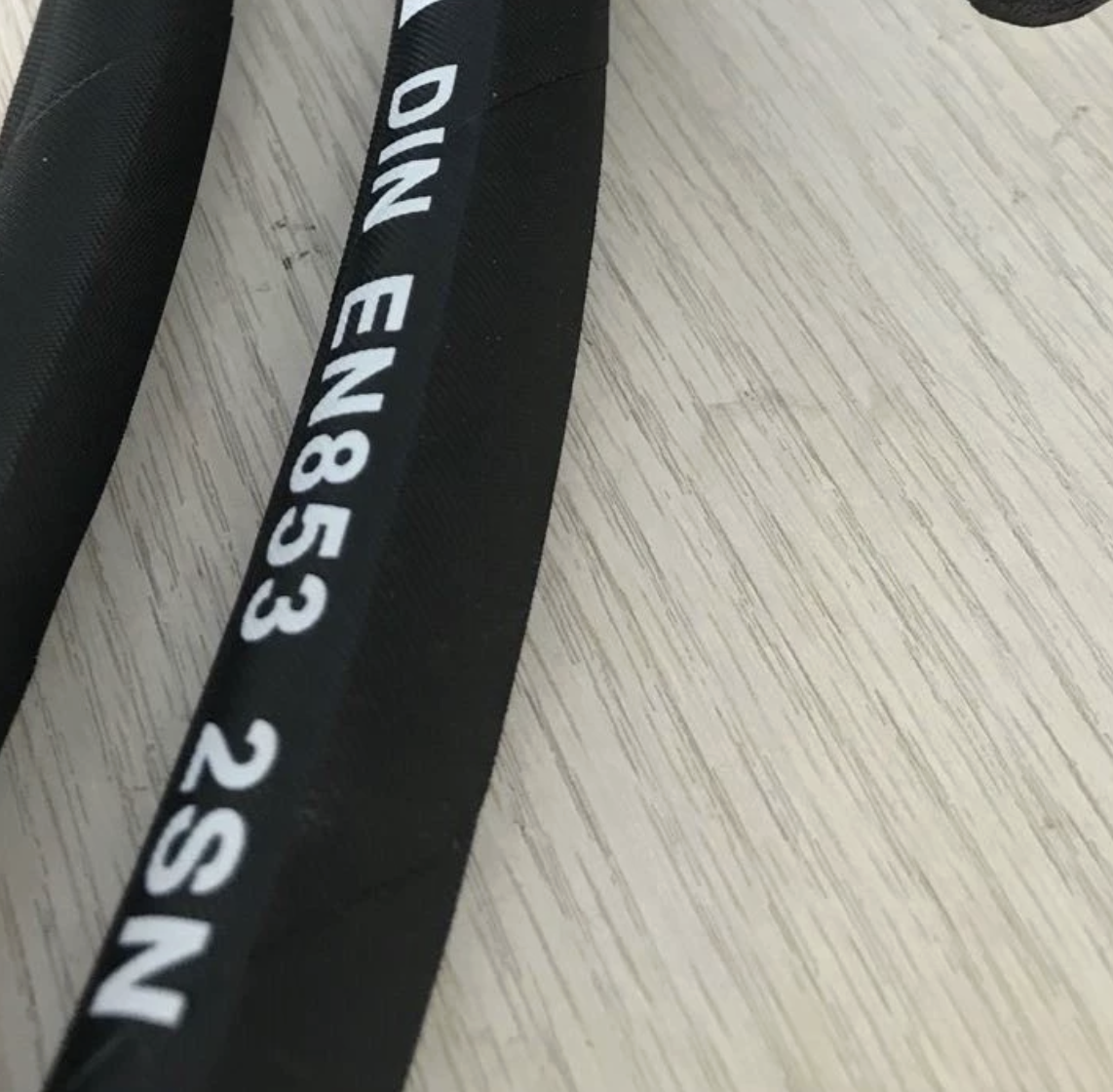

Manufactured under strict ISO standards, with 100% pressure testing. Each hose is marked with EN853 2SN, size, pressure, and batch number for full traceability.

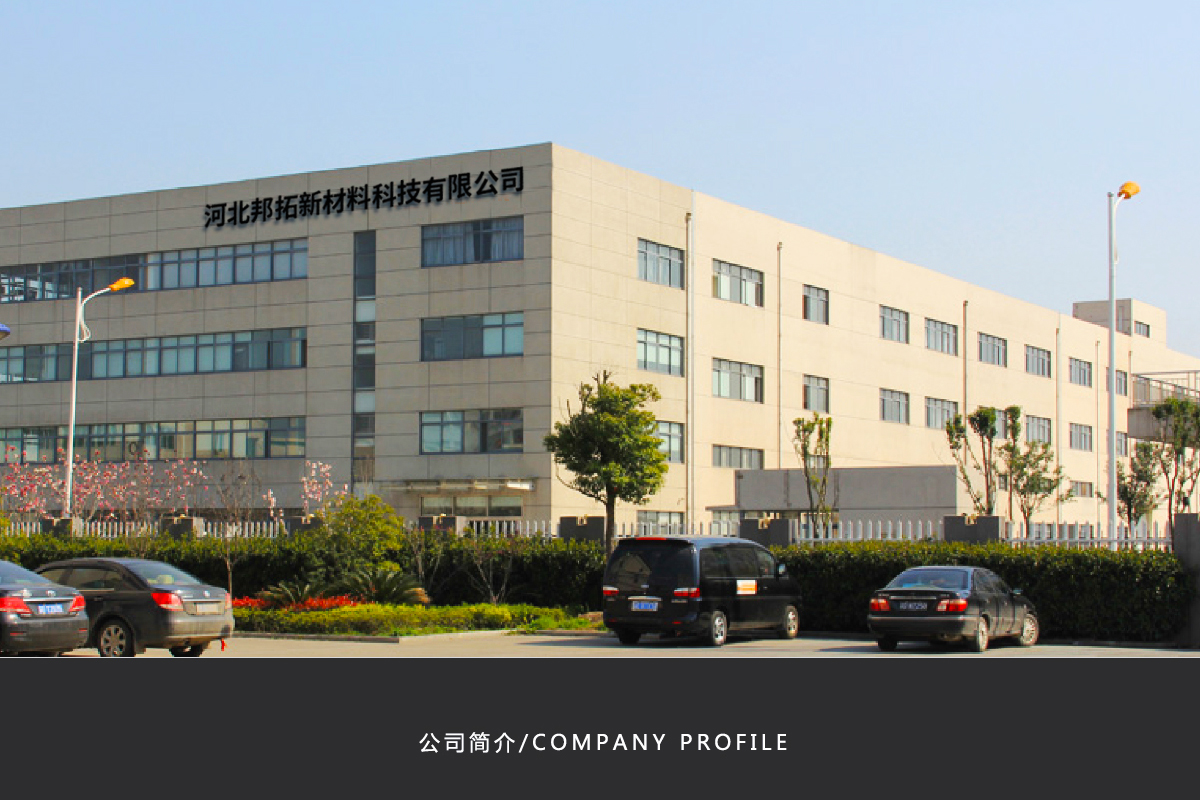

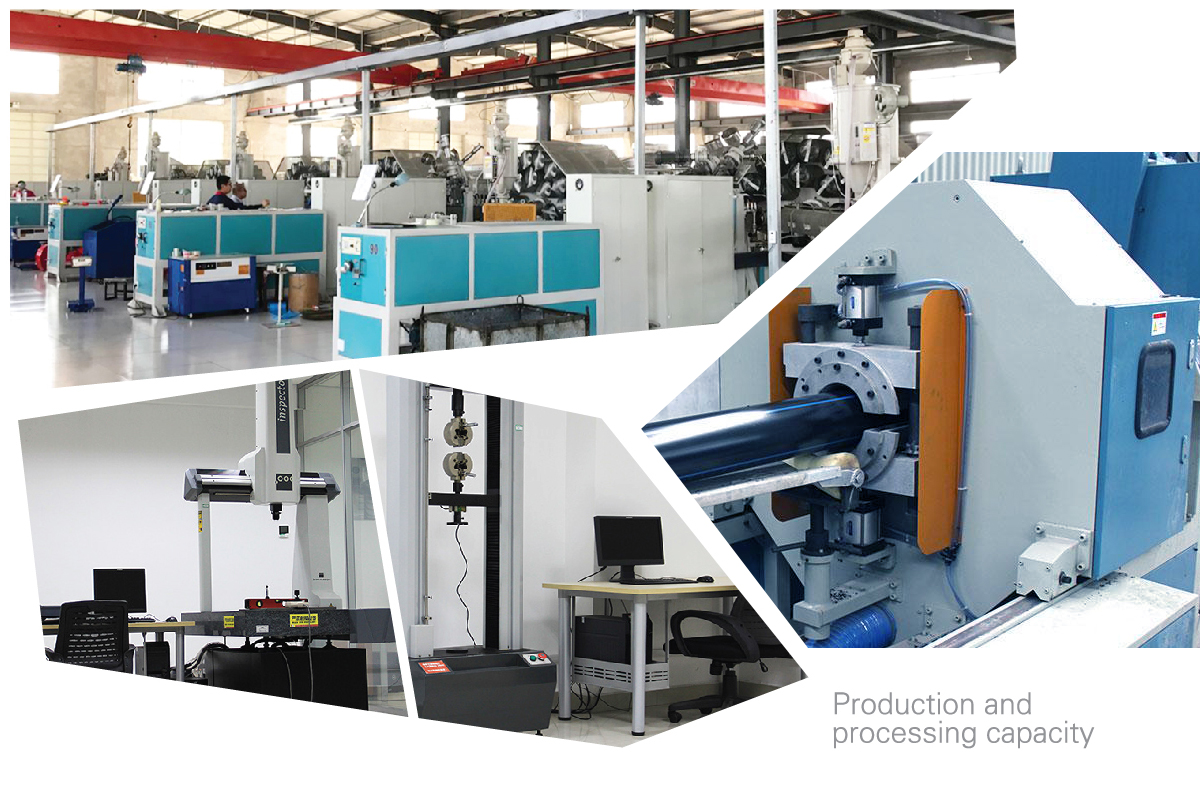

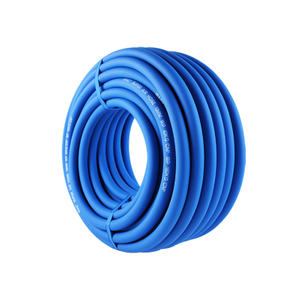

Since its establishment, Hebei Bangtuo New Material Technology Co., Ltd. has continuously innovated, pursued excellence, established a brand, and provided honest services. Its equipment has been constantly updated and upgraded. After years of struggle and efforts, it has gained the trust and recognition of customers at home and abroad. With a strong team and strong innovation and research and development capabilities, it can develop and produce products according to customers' special needs to meet their different product requirements. We specialize in the production of PVC high-pressure gas pipes, pneumatic hoses, garden pipes, steel wire spraying pipes, spray pipes, etc. The products are widely used in the transportation of liquid, gas, and powder materials in industries such as industry, agriculture, horticulture, and civil engineering.
